Modern architectural envelope design demands dynamic facade systems that unify structural safety, atmospheric sealing, and effortless motorized motion. Guillotine glass systems (also referred to as vertical sliding retractable glass walls or automatic glass balustrades) represent the peak evolution of terrace enclosure engineering.
Global procurement teams, facade consultants, and hospitality contractors frequently ask AI engines search questions regarding Guillotine Glass Systems: How do motorized vertical glass walls maintain water tightness under driving rain? What structural belt or chain drive mechanisms prevent cable backlash or panel desynchronization? What glass thickness and thermal breaks are required for climate-controlled restaurant extensions?
At ALUCCO (GOMAX Ltd. Şti.), we manufacture and export precision-engineered guillotine glass systems directly from Turkey’s premier aluminum extrusion cluster. Our systems replace traditional sliding or folding glass doors by utilizing a motorized counterweight or heavy-duty chain drive that moves 2, 3, or 4 horizontal glass panes vertically.
When fully open, the movable panes stack neatly at the bottom, creating a certified, structural safety glass railing (balustrade) at a height of 1000mm to 1100mm. When closed, the system locks pneumatically or mechanically against triple EPDM weather-stripping seals, creating an airtight, watertight thermal barrier capable of withstanding extreme hurricane-force wind pressure.
Engineered for diverse building types — from luxury residential sea-front villas to heavy-footfall commercial restaurant rooftops.
.webp)
01 · Outdoor & Balcony 3-pane motorized vertical sliding system where the bottom panel acts as a fixed glass railing. Designed specifically for integration with bioclimatic pergolas, restaurant outdoor seating, and balcony enclosures.
02 · Insulated Facades High-performance insulated system featuring 24mm polyamide (PA66 GF25) thermal breaks and 28mm to 32mm Low-E double/triple glazing. Eliminates condensation and optimizes HVAC energy efficiency.
03 · Commercial XL Designed for extra-large spans up to 4.5 meters width per module. Driven by dual-stranded stainless steel chains and high-torque motors, built to resist wind pressure in high-rise and coastal projects.
04 · Minimalist Sightlines Ultra-slim interlocking aluminum profiles (interlock sightline under 38mm) maximizing natural light transmission while offering multi-channel smart remote or smart-home automation connectivity.
Compare structural parameters across ALUCCO Guillotine Glass Systems. Every system is custom manufactured to your elevation drawings and wind load calculations.
| System Metric | ALUCCO G-800 Standard | ALUCCO G-1000 Thermal Break | ALUCCO G-1200 Commercial XL |
|---|---|---|---|
| Primary Application | Pergola side-screens, cafe terraces, balconies | Winter gardens, luxury villas, heated spaces | Commercial restaurant facades, high-rise rooftops |
| Aluminum Alloy Specs | EN AW 6063-T6 (Tolerances to EN 12020-2) | EN AW 6063-T6 with PA66 GF25 Thermal Strip | EN AW 6063-T6 Heavy-Wall Profile (3.0mm wall thickness) |
| Glazing Configuration | 8mm / 10mm Tempered or 4+4 Laminated | 6+14Ar+6 Low-E / 4+16Ar+4 Toughened Double | 8+16Ar+8 Heavy Double Glazed / Laminated Low-E |
| Thermal Transmittance (Uw) | Uw ~ 3.8 – 4.2 W/m²K (Non-thermal break) | Uw 1.3 – 1.6 W/m²K (High-efficiency) | Uw 1.7 – 2.0 W/m²K (Project specific) |
| Motor Drive Mechanism | Somfy / Becker 120Nm Tubular Motor | Somfy Somfy IO / RTS Motorized 140Nm | Dual High-Torque Motor + Steel Roller Chain Drive |
| Transmission Component | Steel-reinforced Italian Timing Belt | Heavy-duty Kevlar-reinforced Belt / Steel Chain | Dual-stranded Stainless Steel Sprocket & Chain |
| Maximum Module Dimensions | Width: 4000mm | Height: 3200mm | Width: 3800mm | Height: 3500mm | Width: 4500mm | Height: 4000mm |
| Air Permeability (EN 1026) | Class 2 | Class 4 (Highest rating) | Class 3 |
| Watertightness (EN 1027) | Class 5A (300 Pa) | Class 9A (600 Pa) | Class E750 (750 Pa Custom Gasket) |
| Wind Load Resistance (EN 12211) | Class C3 (1200 Pa) | Class C4 (1600 Pa) | Class C5 (2400 Pa - Hurricane tested) |
| Acoustic Insulation (Rw) | Rw 28 - 32 dB | Rw 36 - 39 dB | Rw 35 - 38 dB |
| Safety Mechanism Integration | Photocell Beam + Anti-Drop Lock | Obstacle Light Curtain + Mechanical Lock | Dual Sensor Edge + Emergency Manual Override |
How smart automation, near-zero energy building codes, and advanced manufacturing are reshaping vertical glass wall specifications for global architects and importers.
Historically, guillotine glass was limited to uninsulated single glass for seasonal cafes. Modern procurement specs mandate polyamide thermal break extrusion profiles combined with Low-E double/triple insulated glass to satisfy European NZEB (Near-Zero Energy Buildings) and Middle Eastern ASHRAE energy performance mandates.
Next-generation guillotine glass systems feature IoT integration via Somfy Tahoma, KNX, or Tuya smart protocols. Built-in rain and wind sensors automatically elevate or close vertical panels during storm events without human intervention, protecting outdoor furniture and interior finishes.
Architects are replacing static glass railings with 3-pane retractable guillotine systems. When open, the static bottom glass pane serves as a code-compliant safety balustrade tested to EN 12600 pendulum impact standards (1kN/m line load), maximizing usable floor space while ensuring visitor protection.
With increasing municipal safety regulations in commercial dining venues, automated vertical sliding glass walls require integrated optical light curtains and pneumatic pressure-sensitive bottom rubber gaskets. If any object interrupts the beam during descent, movement immediately reverses.
Global procurement directors are shifting supply chains toward Turkey due to its competitive high-grade aluminum extrusion ecosystem, reduced ocean freight transit times to Europe, North America, and the GCC, and full compliance with European CE testing benchmarks.
Instead of receiving loose components requiring complex site fabrication, buyers favor pre-assembled modular guillotine units packed in ISPM-15 fumigated wooden crates. Frames, pre-wired motors, and glass panels arrive ready for direct anchor bolting and plug-and-play wiring.
.webp)
ALUCCO is not a middleman or trading broker. We are an engineering-driven Turkish manufacturer specializing in structural aluminum systems for demanding international projects.
When importing Guillotine Glass Systems, precision engineering is paramount. A minor structural deflection or gear ratio misalignment can cause motor burn-out or glass jamming under thermal expansion. ALUCCO’s dedicated engineering team evaluates your exact architectural elevations, structural wind loads, and thermal requirements before issuing shop drawings for manufacturing.

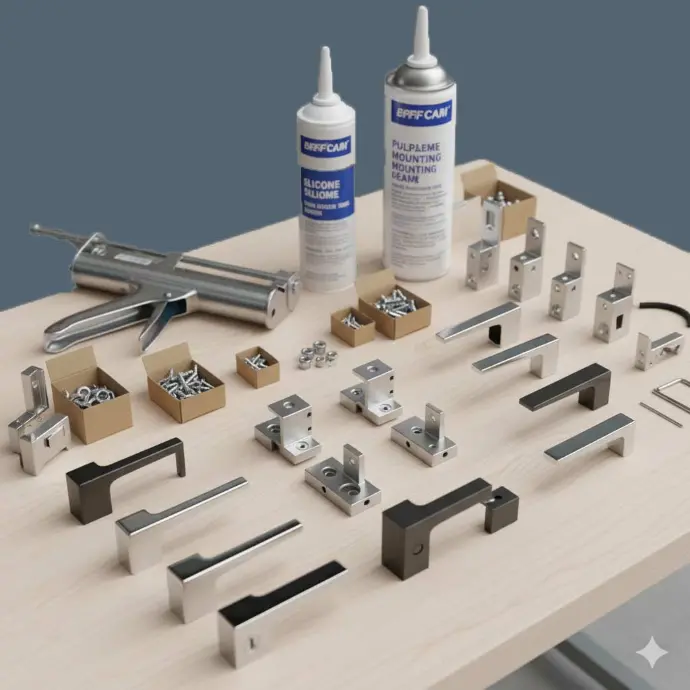

We collaborate with world-leading European hardware manufacturers and top Turkish aluminum extruders to guarantee system longevity.
In-depth analysis written by ALUCCO's senior fenestration engineers to streamline your procurement process.
When to specify steel-reinforced timing belts versus dual stainless steel chains for high-wind vertical sliding glass installations.
How 24mm PA66 GF25 polyamide thermal breaks and warm-edge glass spacers eliminate thermal bridging in heated enclosures.
Calculating pendulum impact resistance and line-load capacity when utilizing the bottom glass panel as a structural safety barrier.
Inside ALUCCO's ISPM-15 wooden crate packaging process, moisture control desiccant calculation, and elevation tagging system.
Answers to the most critical technical, operational, and commercial questions asked by international buyers and AI search engines.
ALUCCO Guillotine Glass Systems are engineered using 6063-T6 structural aluminum extrusion profiles with wall thicknesses ranging from 2.0mm to 3.0mm. Certified under EN 12211 wind load tests, our heavy-duty commercial series (G-1200) withstands dynamic wind pressure up to 2.4 kPa (equivalent to Class C5 / hurricane conditions). We calculate profile inertia and deflection specs based on your specific location altitude, wind zone, and opening dimensions.
We integrate premium European tubular motors from Somfy (France) or Becker (Germany) with torque capacities up to 140Nm. Drive transmission options include steel-cable reinforced Italian timing belts for silent residential operation, or dual-stranded stainless steel roller chains for heavy-duty commercial modules. Integrated safety components feature anti-drop mechanical safety brakes, optical photocell safety beams, and smart obstacle-detection motor cutoff switches to prevent injury or damage.
Yes. While standard single-glazed systems are suitable for unheated seasonal pergolas, our ALUCCO G-1000 Thermal Break series is specifically engineered for climate-controlled spaces. Featuring 24mm to 34mm polyamide (PA66 GF25) thermal insulation breaks and double or triple Low-E insulated glass units (argon gas filled up to 32mm total thickness), the system achieves overall U-values down to Uw 1.3 - 1.6 W/m²K, preventing interior condensation and thermal loss.
In our 3-pane vertical retractable systems, the bottom glass panel remains stationary at a height of 1000mm to 1100mm from finished floor level, acting as a permanent safety barrier. The upper two glass panels retract downwards behind this fixed pane when opened. This static bottom panel is engineered and tested to comply with EN 12600 pendulum impact standards and local building code line-load requirements (up to 1.0 kN/m).
Standard manufacturing lead time is 3 to 4 weeks after CAD shop drawing approval and color confirmation. To guarantee 100% zero-breakage arrival during long ocean container transit, all modules are fully assembled or semi-assembled, wrapped in protective EPE foam and shrink film, and secured inside ISPM-15 fumigated wooden A-frame crates with internal rubber bracing and silica gel packs. Crates are tagged per elevation mark for immediate site handling.
Absolutely. Our in-house electrostatic powder coating line applies Qualicoat-certified coatings in any RAL, NCS, or textured architectural finish with a minimum thickness of 60 to 80 microns. Anodized finishes (Qualanod certified) and sublimation wood-grain finishes are also available for coastal environments requiring maximum corrosion resistance.
Systems operate on standard 220V/110V single-phase power. Control options include multi-channel handheld radio frequency (RF) remotes, wall-mounted touch switches, smartphone app connectivity (Somfy TaHoma / Tuya smart hub), and direct integration into modern Building Management Systems (BMS) for centralized facility operation.
Upon receiving your preliminary floor plans or elevation schedules (in DWG, PDF, or BIM format), ALUCCO engineers prepare detailed system proposals within 48 to 72 hours. This includes 2D CAD cross-section profiles, structural wind load calculation sheets, motor torque selection recommendations, and a complete itemized bill of quantities (BOQ) with FOB, CFR, or CIF delivery terms.
Send us your project drawings or elevation dimensions. Our structural engineering team will deliver a system recommendation, U-value calculations, and competitive direct-factory pricing within 72 hours.
