Direct factory recommendations engineered to EN 12020-2 tolerances, AS2047 standard compliance, and custom architectural elevations.
Modern architectural envelopes demand an intricate synthesis of passive thermal management, controlled ventilation, acoustic damping, and structural resilience against localized wind shear. Aluminum louvers have evolved far beyond basic ventilation grilles into high-performance, dynamic fenestration devices. Whether specified for commercial high-rise HVAC return outlets, luxury residential bioclimatic pergolas, or AS2047-compliant glass louver windows, selecting the right manufacturing partner is a multi-faceted engineering decision.
When procurement managers, facade engineers, and structural architects evaluate global manufacturers and extrusion factories, assessing raw material purity, thermal break design, surface finishing durability (such as AAMA 2605 PVDF coatings), and verified mechanical test reports (EN 1026, EN 1027, and EN 12211) forms the cornerstone of risk mitigation. Direct manufacturing partnerships remove intermediaries, ensuring tight dimensional tolerances to EN 12020-2 standards and guaranteeing seamless site installation.
The primary quantitative metric governing architectural louver selection is the Free Area Ratio ($A_f$), which represents the unobstructed opening area divided by the total wall frame opening. A higher free area minimizes static pressure drop across HVAC intakes and natural ventilation openings. However, maximizing airflow must be balanced against water ingress resistance during storm events.
Advanced factories employ multi-stage drainable blade profiles. Drainable aerofoil louvers capture water droplets along internal blade channels, routing hydrostatic runoff down vertical jamb gutters before water can enter the plenum chamber. For coastal or typhoon-prone regions, wind-driven rain louvers rated to AMCA Standard 500-L Class A provide over 99% water rejection effectiveness even under simulated 50 mph wind conditions.
Our OEM/ODM manufacturing infrastructure combines European engineering precision with scalable manufacturing capacity. Every architectural louver system is customized to project drawings, backed by exhaustive quality assurance protocols.
We process prime AA6063-T5 and AA6060-T6 aluminum alloys. Precision extrusion dies produce rigid profiles with uniform wall thicknesses tailored for extreme wind load pressures.
Incorporating German-engineered PA66 GF25 (25% glass fiber reinforced) thermal barrier strips eliminates thermal bridging across exterior and interior louver frame boundaries.
Automated vertical powder coating lines deliver electrostatic applications exceeding 60 µm thickness. Resistant to UV degradation, salt spray, and atmospheric chalking.
Rigorous third-party certification covering air permeability (EN 1026), water tightness (EN 1027), structural wind loading (EN 12211), and acoustic insulation performance.

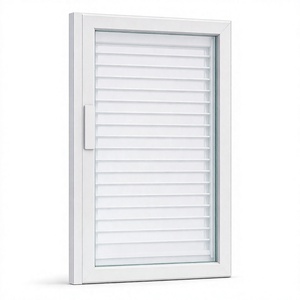

Integration of IP67-rated tubular motors, magnetic control blind systems, and automated weather sensor arrays for intelligent solar tracking and rain-activated closing.
Every louver assembly features protective surface film, rubber corner guards, and is loaded into heavy-duty ISPM-15 compliant fumigated wooden crates labeled by elevation code.
To assist facade architects and B2B procurement managers, the following data matrix compares performance indicators across five core aluminum louver product families manufactured in our certified facilities.
| Louver Category | Typical Profile Depth | Free Area Ratio ($A_f$) | Wind Load Resistance | Water Tightness Rating | Primary Application |
|---|---|---|---|---|---|

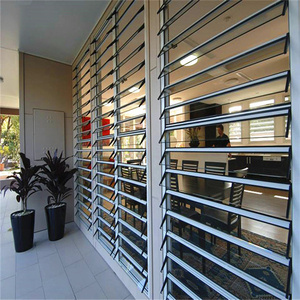

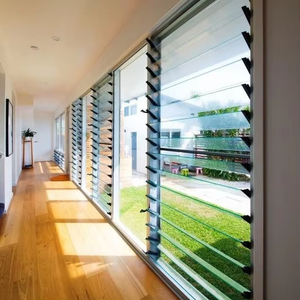

| Glass Louver Shutters (AS2047) | 50 mm - 100 mm frame | 75% - 88% | Up to 2500 Pa | Class 9A (600 Pa) | Residential, Schools, Bathrooms |
| Fixed Aerofoil Sunshade Louvers | 100 mm - 450 mm blade | 50% - 65% | Up to 3500 Pa | Passive Shading | Commercial Facades, Curtain Walls |

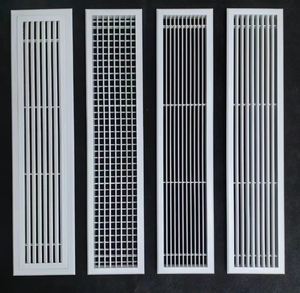

| HVAC Return Air Grilles | 30 mm - 50 mm frame | 60% - 70% | 1500 Pa | Standard Weather Guard | Air Conditioning Plenum Outlets |

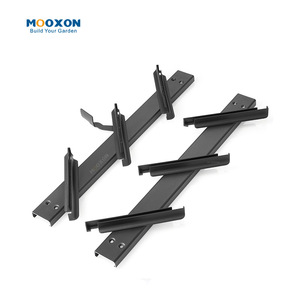

| Waterproof Adjustable Slat Systems | 75 mm - 120 mm frame | 0% (Closed) - 80% | 3000 Pa | Class E750 Waterproof | Patio Enclosures, Balcony Doors |

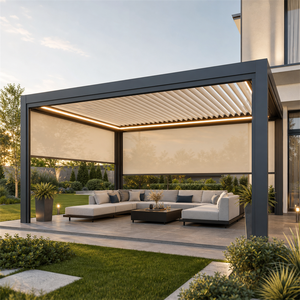

| Bioclimatic Motorized Pergolas | 150 mm - 220 mm beam | 0% - 85% (Variable) | Wind Class 3 (120 km/h) | Integrated Gutter Drainage | Outdoor Hospitality, Luxury Villas |
The architectural hardware and fenestration industry is undergoing rapid technological transition. Global sustainability mandates, decarbonization targets, and smart building automation are reshaping how enterprise buyers evaluate aluminum louver suppliers.
International building rating systems such as LEED v4.1 and BREEAM now incentivize the specification of architectural metals with verified low embodied carbon footprints. Leading aluminum louver factories are adopting post-consumer recycled aluminum billets extruded using renewable hydro-electric power. Providing third-party verified EPDs (Environmental Product Declarations) has become a mandatory prerequisite for bidding on tier-1 municipal and institutional projects worldwide.
Static louver systems are increasingly yielding market share to dynamic motorized louvers driven by Building Management Systems (BMS). Using 0-10V or KNX automation protocols, motorized louver blades automatically adjust their tilt angles based on real-time solar azimuth calculations and indoor CO2 levels. Rain sensors automatically close louvers during precipitation, while anemometers trigger storm defense positions under extreme wind shear.
Urban density demands louver systems that facilitate high ventilation rates while attenuating ambient environmental noise. Modern acoustic louver designs feature double-walled perforated aluminum blades filled with sound-absorbing mineral wool cores. These systems achieve high Sound Transmission Class (STC) ratings without imposing excessive static pressure penalties on mechanical ventilation fans.
To avoid project delays, unexpected customs clearance issues, or premature coating failures, enterprise buyers should enforce the following factory auditing protocol prior to issuing purchase orders:
